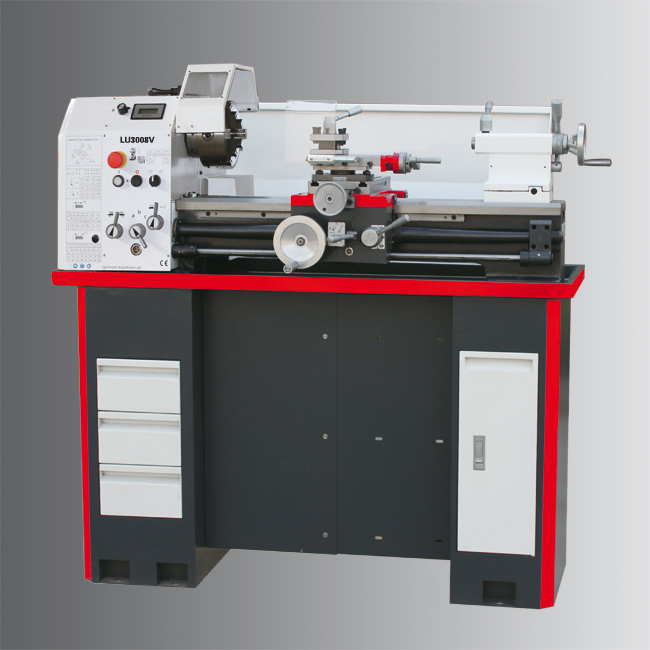

TYK3008V型 车床
型号 Model TYK3008V 货号 Item No. P4430200 加工范围 Capacity 床身上*大回转直径 Turning ø over lathe bed ø310mm 拖板上*大回转直径 Turning ø over cross slide ø190mm 两顶尖距离 Admits between 750mm 主轴中心高 Center height 158mm 床身宽度 Width of bed 180mm 主轴 Headstock 主轴通孔直径 Spindle bore ø38mm 主轴内孔锥度 Spindle taper MT5 主轴转速范围 Spindle speed 30-300/70-700/140-1400/200-2000/300-3000 rpm 进给及螺纹 Feed and thread 小拖板*大行程 Top slide travel 65mm 中拖板*大行程 Cross slide travel 150mm 公制螺纹范围 Threads metric pitches 0.2-3.5mm/U 英制螺纹范围 Threads inch pitches 56-8 threads/inch 尾架 Tailstock 尾架套筒直径 Quill diameter ø38mm 尾架套筒行程 Quill travel 70mm 尾架套筒内孔锥度 Quill taper MT3 电机 Motor 电压 Electric tension 230V 电机功率 Motor power 1.5KW 尺寸及重量...
分类：
描述
| 型号 | Model | TYK3008V |
| 货号 | Item No. | P4430200 |
| 加工范围 | Capacity | |
| 床身上*大回转直径 | Turning ø over lathe bed | ø310mm |
| 拖板上*大回转直径 | Turning ø over cross slide | ø190mm |
| 两顶尖距离 | Admits between | 750mm |
| 主轴中心高 | Center height | 158mm |
| 床身宽度 | Width of bed | 180mm |
| 主轴 | Headstock | |
| 主轴通孔直径 | Spindle bore | ø38mm |
| 主轴内孔锥度 | Spindle taper | MT5 |
| 主轴转速范围 | Spindle speed | 30-300/70-700/140-1400/200-2000/300-3000 rpm |
| 进给及螺纹 | Feed and thread | |
| 小拖板*大行程 | Top slide travel | 65mm |
| 中拖板*大行程 | Cross slide travel | 150mm |
| 公制螺纹范围 | Threads metric pitches | 0.2-3.5mm/U |
| 英制螺纹范围 | Threads inch pitches | 56-8 threads/inch |
| 尾架 | Tailstock | |
| 尾架套筒直径 | Quill diameter | ø38mm |
| 尾架套筒行程 | Quill travel | 70mm |
| 尾架套筒内孔锥度 | Quill taper | MT3 |
| 电机 | Motor | |
| 电压 | Electric tension | 230V |
| 电机功率 | Motor power | 1.5KW |
| 尺寸及重量 | Dimension and weight | |
| 外形尺寸 | Overall dimension | 1525×705×583mm |
| 包装尺寸 | Packing size | 1500×720×690mm |
| 毛重 | Gross weight | 260kg |
