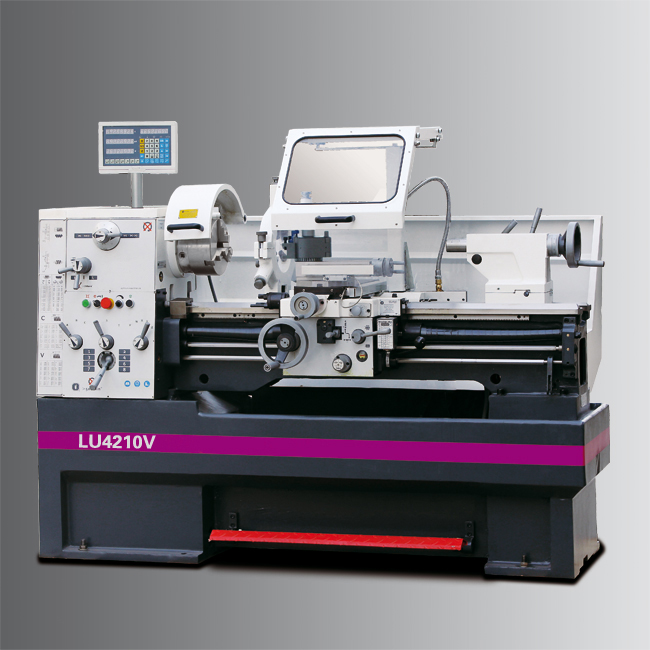

Type TYK 4210 V Item No  P340 3150 Machine datas 　 Electrical connection 400 V / 3 Ph ~50 Hz  Total connected value  5.5 kW   Coolant equipment 100 W Working areas 　 Centre height 210 mm Centre width 1'000 mm Turning Ø over lathe bed 420 mm Turning Ø over cross slide 250 mm Turning Ø in the bed bridge 590 mm Length of bed bridge  260 mm Bed width 250 mm Speeds 　 Spindle speed 30 - 550 min-1 / 160 - 3'000 min-1* Number of steps 2 steps, electrically adjustable speed Headstock 　 Spindle taper MT 6 Spindle seat Camlock DIN ISO 702-2 Nr. 6  Spindle drilling, rod passage Ø 52 mm Slide 　 Travel top slide 140 mm Travel cross slide 230 mm Longitudinal feed in the range of 0.05 - 1.7 mm/rev;  Transverse feed in the range of 0.025 - 0.85 mm/rev; Pitch - Metric in the r...
