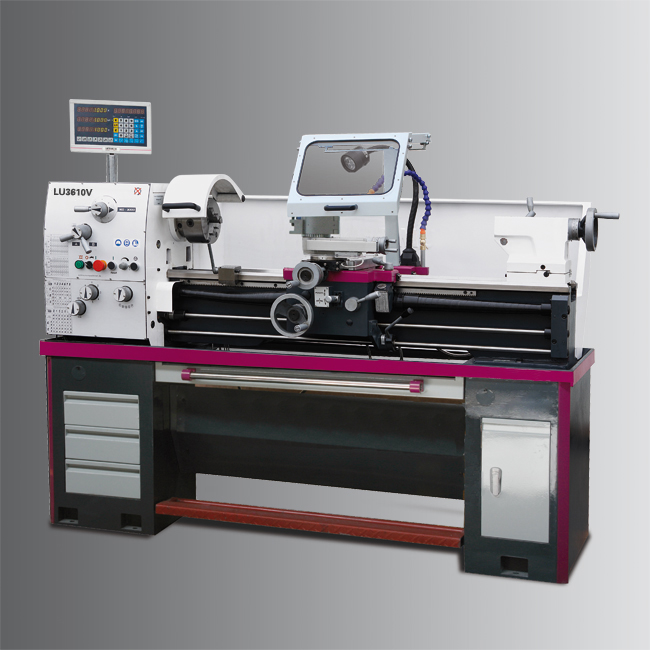

Type TYK 3610 V Item No  P340 3130 Machine datas 　 Electrical connection 400 V / 3 Ph ~50 Hz  Main motor power 4 kW Coolant equipment 40 W Working areas 　 Centre height 180 mm Centre width 1'000 mm Turning Ø over lathe bed 356 mm Turning Ø over cross slide 220 mm Turning Ø in the bed bridge 516 mm Length of bed bridge  240 mm Bed width 205 mm Speeds 　 Spindle speed 30 - 550 min-1 / 160 - 3000 min-1* Number of steps 2 steps, electrically adjustable speed Headstock 　 Spindle taper MT 5 Spindle seat Camlock DIN ISO 702-2 Nr. 4 Spindle drilling, rod passage Ø 38 mm Slide 　 Travel top slide 95 mm Travel cross slide 180 mm Longitudinal feed in the range of 0.043 - 0.653 mm/rev;42 feeds Transverse feed in the range of 0.015 - 0.220 mm/rev;42 feeds Pitch - Metric in the range of 0.45 - 7.5 m...
