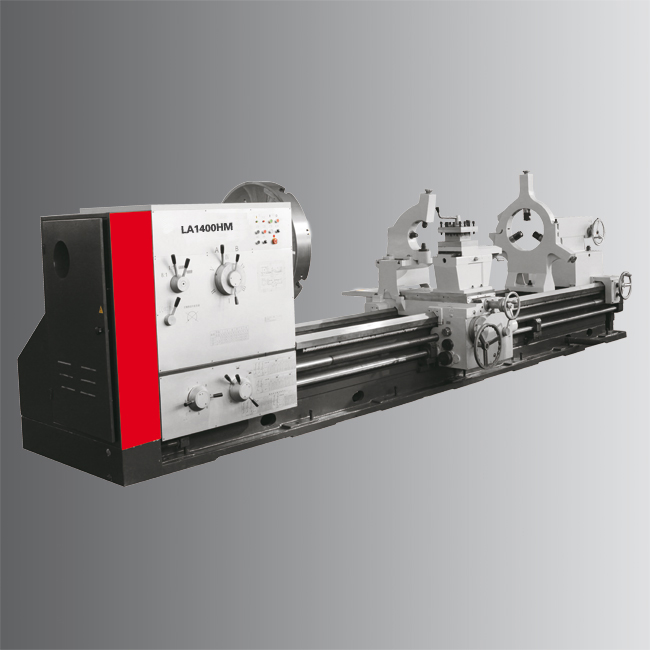

TYK1400HM/TYK1600HM型 车床
型号 MODEL TYK1400HM TYK1600HM 货号 Item No. P4705100 P4707100 机床*大承重 Max.weight of workpiece 8T 8T 床身上*大回转直径 Max.swing over bed Φ1400mm Φ1600mm 横拖板上*大回转直径 Max.swing over cross slide Φ1000mm Φ1200mm 两尖顶距离 Center distance 1.5m 2m 3m 4m 5m 6m 8m 10m 12m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m 床身宽度 Width of bed 780mm 780mm 床头箱 HEAD STOCK 主轴孔径 Spindle hole ∮130mm ∮130mm 主轴锥孔 Spindle taper 140# 140# 主轴转速范围 Spindle speeds 3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 进给箱 GEAR BOX-THREADS&FEEDS 快速进给：纵向/横向 Rapid feed:Long/Cross 3400mm/min,1700mm/min 3400mm/min,1700mm/min 刀架 TOOL-POST 主轴中心至刀具安装面距离 Distance between Center & Tool 48mm 48mm 刀具截面 Tool sect...
分类：
描述
| 型号 | MODEL | TYK1400HM | TYK1600HM |
| 货号 | Item No. | P4705100 | P4707100 |
| 机床*大承重 | Max.weight of workpiece | 8T | 8T |
| 床身上*大回转直径 | Max.swing over bed | Φ1400mm | Φ1600mm |
| 横拖板上*大回转直径 | Max.swing over cross slide | Φ1000mm | Φ1200mm |
| 两尖顶距离 | Center distance | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
| 床身宽度 | Width of bed | 780mm | 780mm |
| 床头箱 | HEAD STOCK | ||
| 主轴孔径 | Spindle hole | ∮130mm | ∮130mm |
| 主轴锥孔 | Spindle taper | 140# | 140# |
| 主轴转速范围 | Spindle speeds | 3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 | 3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 |
| 进给箱 | GEAR BOX-THREADS&FEEDS | ||
| 快速进给：纵向/横向 | Rapid feed:Long/Cross | 3400mm/min,1700mm/min | 3400mm/min,1700mm/min |
| 刀架 | TOOL-POST | ||
| 主轴中心至刀具安装面距离 | Distance between Center & Tool | 48mm | 48mm |
| 刀具截面 | Tool section | 45*45mm | 45*45mm |
| 拖板 | CARRIAGE | ||
| 中拖板*大行程 | Cross slide travel | 650mm | 650mm |
| 小拖板*大行程 | Top slide travel | 280mm | 280mm |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直径 | Sleeve diameter | ∮160mm | ∮160mm |
| 尾座套筒锥度 | Sleeve taper | 80# or MT6 | 80# or MT6 |
| 尾座套筒*大行程 | Sleeve travel | 300mm | 300mm |
| 电机 | MOTOR | ||
| 主电机 | Main motor | 22KW | 22KW |
| 冷却泵电机 | Coolant motor | 0.15KW | 0.15KW |
| 快速进给电机 | Rapid feed motor | 1.5KW | 1.5KW |
