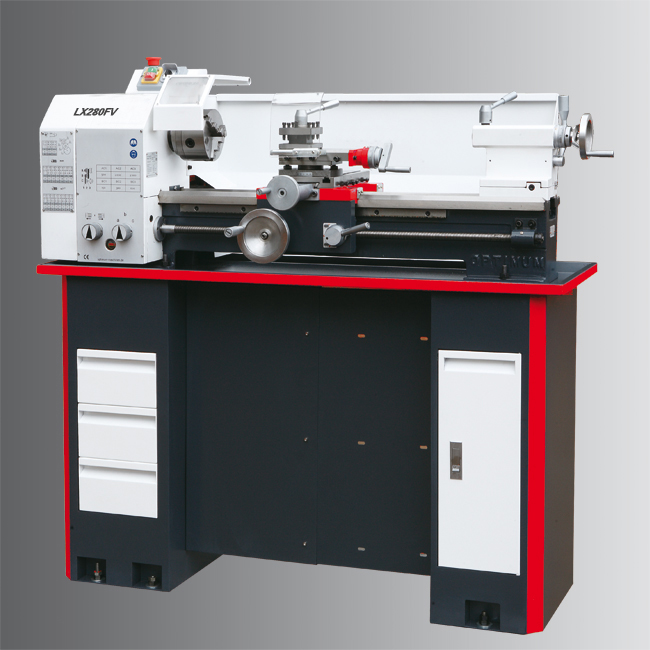

TYK280F/TYK280FV型 车床
型号 Model TYK 280F TYK 280FV 产品编号 Code No. PX4128102(230V) PX4428100 产品编号 Code No. 4128103(400V) 加工范围 Capacity 床身上*大回转直径 Swing over bed ø280mm ø280mm 拖板上*大回转直径 Swing over cross slide ø170mm ø170mm 两顶尖中心距 Admits between 700mm 700mm 主轴中心高 Center height 140mm 140mm 床身宽度 Width of bed 180mm 180mm 主轴 HEADSTOCK 主轴通孔直径 Spindle bore ø26mm ø26mm 主轴内孔锥度 Taper of spindle bore MT4 MT4 主轴转速范围 Range of spindle speed 150-2000rpm 50-2200rpm 进给及螺纹 FEEDS AND THREADS 小拖板*大行程 Top slide travel 60mm 60mm 中拖板*大行程 Cross slide travel 150mm 150mm 车刀刀杆*大截面 Max.Section of tool 14x14mm 14x14mm 公制螺纹范围 Threads metric pitches 0.2-3.5mm 0.2-3.5mm 英制螺纹范围 Threads imperial pitches 8-56TPI 8-56...
分类：
描述
| 型号 | Model | TYK 280F | TYK 280FV |
| 产品编号 | Code No. | PX4128102(230V) | PX4428100 |
| 产品编号 | Code No. | 4128103(400V) | |
| 加工范围 | Capacity | ||
| 床身上*大回转直径 | Swing over bed | ø280mm | ø280mm |
| 拖板上*大回转直径 | Swing over cross slide | ø170mm | ø170mm |
| 两顶尖中心距 | Admits between | 700mm | 700mm |
| 主轴中心高 | Center height | 140mm | 140mm |
| 床身宽度 | Width of bed | 180mm | 180mm |
| 主轴 | HEADSTOCK | ||
| 主轴通孔直径 | Spindle bore | ø26mm | ø26mm |
| 主轴内孔锥度 | Taper of spindle bore | MT4 | MT4 |
| 主轴转速范围 | Range of spindle speed | 150-2000rpm | 50-2200rpm |
| 进给及螺纹 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 60mm | 60mm |
| 中拖板*大行程 | Cross slide travel | 150mm | 150mm |
| 车刀刀杆*大截面 | Max.Section of tool | 14x14mm | 14x14mm |
| 公制螺纹范围 | Threads metric pitches | 0.2-3.5mm | 0.2-3.5mm |
| 英制螺纹范围 | Threads imperial pitches | 8-56TPI | 8-56TPI |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直径 | Quill diameter | ø30mm | ø30mm |
| 尾座套筒行程 | Quill travel | 105mm | 105mm |
| 尾座套筒内孔锥度 | Quill taper | MT2 | MT2 |
| 横向调整 | Cross adjustment | ±5mm | ±5mm |
| 电机 | MOTOR | ||
| 主电机功率 | Main motor power | 850W DC | 1.1KW DC |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（长x宽x高） | Overall dimension(LxWxH) | 1220x660x560mm | 1220x660x560mm |
| 包装箱尺寸（长x宽x高） | Packing size(LxWxH) | 1320x700x680mm | 1320x700x680mm |
| 净重/毛重 | Net weight/Gross weight | 196/225kg | 196/225kg |
