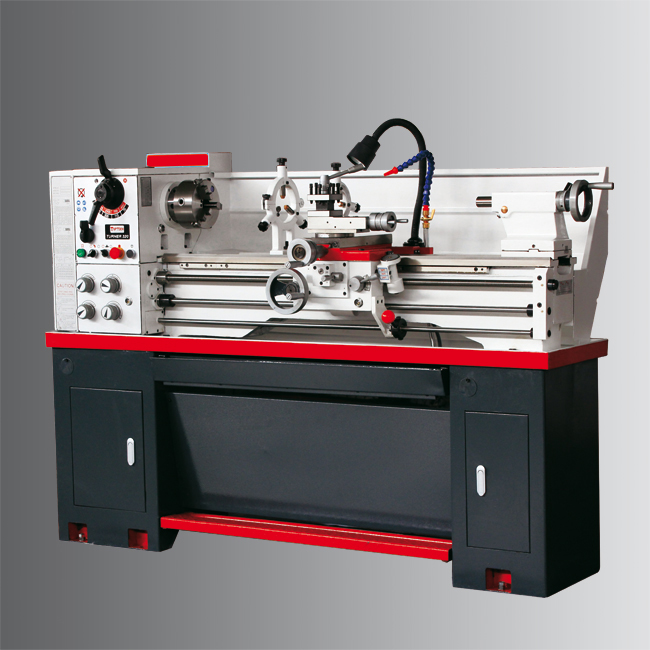

TYK320/TYK360L型 车床
型号 Model TYK320 TYK 360L 产品编号 Code No. P4232300 P4237300 加工范围 Capacity 床身上*大回转直径 Swing over bed ø330mm ø360mm 拖板上*大回转直径 Swing over cross slide ø190mm ø210mm 马鞍槽内*大回转直径 Swing in gap diameter ø475mm ø490mm 花盘前马鞍有效长度 Length of gap 115mm 115mm 两顶尖中心距 Admits between 1000mm 1000mm 主轴中心高 Center height 165mm 165mm 床身宽度 Width of bed 185mm 185mm 主轴 HEADSTOCK 主轴端部 Spindle nose D1-4 D1-4 主轴通孔直径 Spindle bore ø38mm ø38mm 主轴内孔锥度 Taper of spindle bore MT5 MT5 主轴转速范围 Range of spindle speed 70-2000rpm 70-2000rpm 进给及螺纹 FEEDS AND THREADS 小拖板*大行程 Top slide travel 95mm 95mm 中拖板*大行程 Cross slide travel 180mm 180mm 大丝杆规格 Lead screw thread 4mm 4mm 车刀刀杆*大截面 Max.S...
分类：
描述
| 型号 | Model | TYK320 | TYK 360L |
| 产品编号 | Code No. | P4232300 | P4237300 |
| 加工范围 | Capacity | ||
| 床身上*大回转直径 | Swing over bed | ø330mm | ø360mm |
| 拖板上*大回转直径 | Swing over cross slide | ø190mm | ø210mm |
| 马鞍槽内*大回转直径 | Swing in gap diameter | ø475mm | ø490mm |
| 花盘前马鞍有效长度 | Length of gap | 115mm | 115mm |
| 两顶尖中心距 | Admits between | 1000mm | 1000mm |
| 主轴中心高 | Center height | 165mm | 165mm |
| 床身宽度 | Width of bed | 185mm | 185mm |
| 主轴 | HEADSTOCK | ||
| 主轴端部 | Spindle nose | D1-4 | D1-4 |
| 主轴通孔直径 | Spindle bore | ø38mm | ø38mm |
| 主轴内孔锥度 | Taper of spindle bore | MT5 | MT5 |
| 主轴转速范围 | Range of spindle speed | 70-2000rpm | 70-2000rpm |
| 进给及螺纹 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 95mm | 95mm |
| 中拖板*大行程 | Cross slide travel | 180mm | 180mm |
| 大丝杆规格 | Lead screw thread | 4mm | 4mm |
| 车刀刀杆*大截面 | Max.Section of tool | 16x16mm | 16x16mm |
| 公制螺纹范围 | Threads metric pitches | 0.25-11mm | 0.4-7mm |
| 英制螺纹范围 | Threads imperial pitches | 4-112T.P.I. | 8-112T.P.I |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直径 | Quill diameter | ø32mm | ø32mm |
| 尾座套筒行程 | Quill travel | 100mm | 100mm |
| 尾座套筒内孔锥度 | Quill taper | MT3 | MT3 |
| 电机 | MOTOR | ||
| 主电机功率 | Main motor power | 1.5KW | 1.5KW |
| 冷却泵功率 | Coolant pump power | 40W | 40W |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（长x宽x高） | Overall dimension(LxWxH) | 1820x740x1240mm | 1870x740x124mm |
| 包装箱尺寸（长x宽x高） | Packing size(LxWxH) | 1930x760x1450mm | 1970x760x1450mm |
| 净重/毛重 | NW/GW | 520/640kg | 520/640kg |
