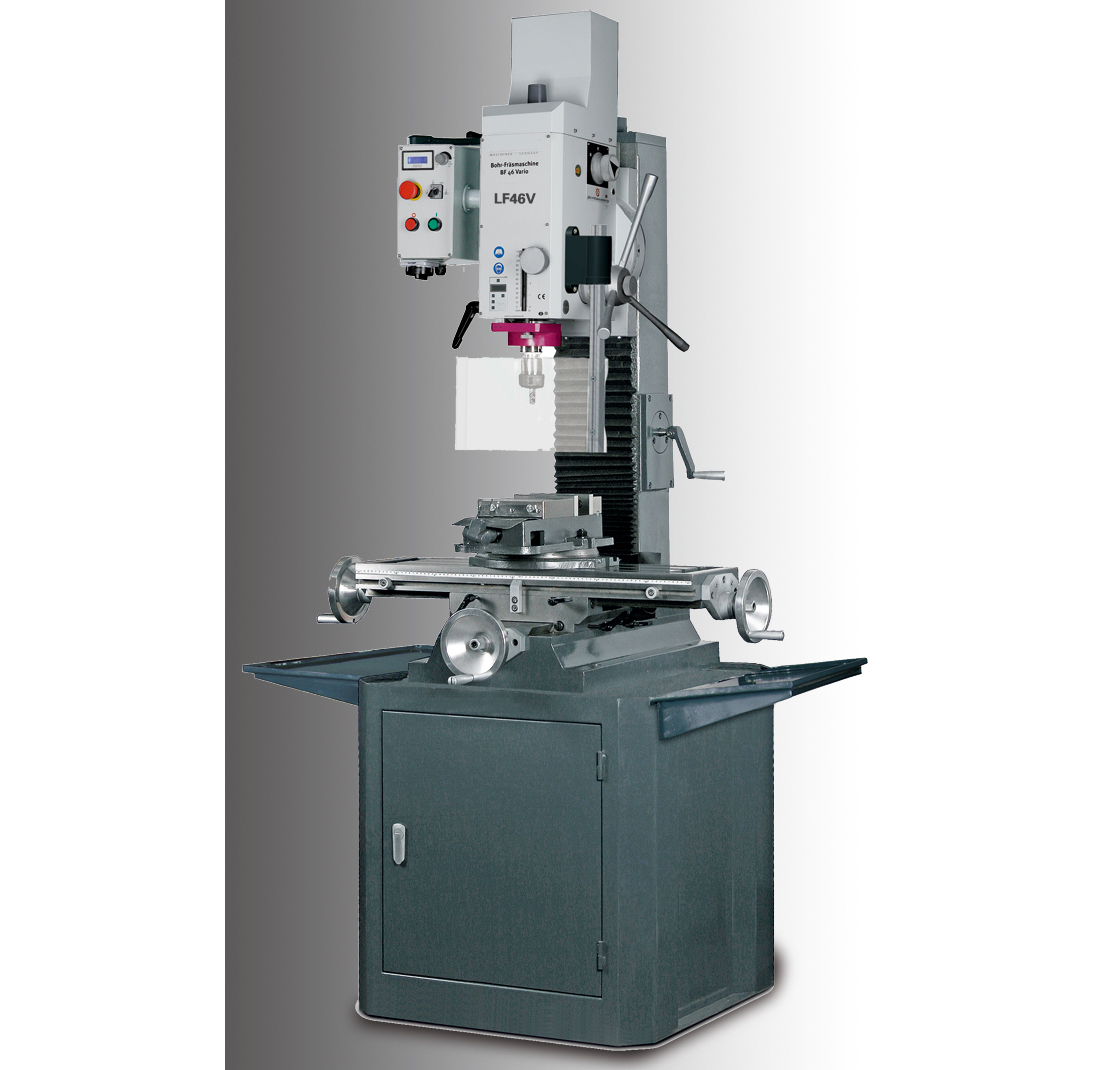

TYK30V/TYK46V型 钻铣床
型号 Model TYK30 V TYK46 V 产品编号 Code No. Z2503000 Z2504600 加工范围 CAPACITY 钻孔直径 Drilling capacity(max.) Ø35mm Ø45mm 面铣直径 Milling capacity cutter head(max.) Ø75mm Ø80mm 立铣直径 Milling capacity end mill cutter(max.) Ø30mm Ø32mm 主轴 SPINDLE HOLDING FIXTURE 主轴锥度 Spindle holding fixture MT3/SK30 MT4/SK40 套筒直径 Sleeve diameter Ø68 Ø80 套筒行程 Sleeve travel 100mm 115mm 主轴轴线至立柱表面距离 Distance spindle-column 240mm 290mm 钻铣头 DRILL-MILL HEAD 主轴倾斜角度 Spindle inclined angle ±45° ±45° 主轴转速 Spindle speed L:100-1100rpm M:160-1700rpm H:320-3100rpm L:115-600rpm&...
分类：
描述
| 型号 | Model | TYK30 V | TYK46 V |
| 产品编号 | Code No. | Z2503000 | Z2504600 |
| 加工范围 | CAPACITY | ||
| 钻孔直径 | Drilling capacity(max.) | Ø35mm | Ø45mm |
| 面铣直径 | Milling capacity cutter head(max.) | Ø75mm | Ø80mm |
| 立铣直径 | Milling capacity end mill cutter(max.) | Ø30mm | Ø32mm |
| 主轴 | SPINDLE HOLDING FIXTURE | ||
| 主轴锥度 | Spindle holding fixture | MT3/SK30 | MT4/SK40 |
| 套筒直径 | Sleeve diameter | Ø68 | Ø80 |
| 套筒行程 | Sleeve travel | 100mm | 115mm |
| 主轴轴线至立柱表面距离 | Distance spindle-column | 240mm | 290mm |
| 钻铣头 | DRILL-MILL HEAD | ||
| 主轴倾斜角度 | Spindle inclined angle | ±45° | ±45° |
| 主轴转速 | Spindle speed | L:100-1100rpm M:160-1700rpm H:320-3100rpm |
L:115-600rpm M:270-1400rpm H:590-3100rpm |
| 十字工作台 | CROSS TABLE | ||
| 工作台（长×宽） | Tabel(L×W) | 750x210mm | 850x240mm |
| X轴行程 | X-axis travel | 450mm | 500mm |
| Y轴行程 | Y-axis travel | 200mm | 260mm |
| Z轴行程 | Z-axis travel | 470mm | 540mm |
| T型槽尺寸/距离/数量 | T-slot size/distance/number | 12mm / 63mm / 3 | 18mm / 80mm / 3 |
| 主轴端面至工作台面*大距离 | Distance spindle-cross table(max.) | 470mm | 550mm |
| 电机 | ELECTRIC SUPPLY | ||
| 电机功率 | Motor | 2.2KW DC brushless motor | 2.2KW DC brushless motor |
| 外形尺寸及重量 | DIMENSIONS AND WEIGHT | ||
| 外形尺寸（长×宽×高） | size(L×W×H) | 1073×791×1324mm | 950x1210x1520mm |
| 包装尺寸（长×宽×高） | packing size(L×W×H) | 844x844x1342mm | 904×904×1535mm |
| 净重/毛重 | Net weight/Gross weight | 266/318kg | 426/492kg |
