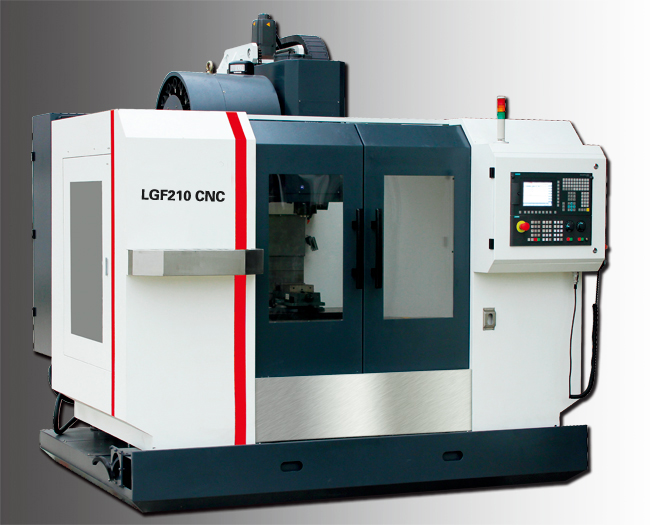

TYK210/LGF300 立式加工中心
数控系统：法那克、西门子、广数、华中等可选。 产品型号 Model LGF210 LGF300 产品编号 Code No L1121000 L1130000 机床电器 Electric Supply 总功率 Total connection 18KW 21KW 主电机功率 Driving motor power 9KW 9KW 冷却泵功率 Coolant pump power 370W 370W 电机扭矩（X轴、Y轴、Z轴） Torque motor(X,Y,Z axis) 8/8/11Nm 16/16/16Nm 主轴 Spindle 主轴锥度 Spindle taper BT40 BT40 主轴转速 Spindle Speed 10-8000RPM 10-8000RPM 主轴中心到立柱表面距离 Distance spindle-column 561mm 570mm *大面铣直径 Face milling dimension (Max) Ø85mm Ø85mm *大立铣直径 End milling dimension (Max) Ø42mm Ø42mm 刀库 Magazine 刀库容量 Capacity 24 tools 24 tools *大刀具尺寸(满刀/邻空刀） Tool diameter (Max) Ø 78mm(with adjacent tool) Ø120mm Ø 78mm(with adjacent tool) Ø120mm *大刀具重量 Tool weight (Max) 8KG 8KG 换刀时间 Time-tool changing 3 Sec...
分类：
描述
数控系统：法那克、西门子、广数、华中等可选。
| 产品型号 | Model | LGF210 | LGF300 | ||
| 产品编号 | Code No | L1121000 | L1130000 | ||
| 机床电器 | Electric Supply | ||||
| 总功率 | Total connection | 18KW | 21KW | ||
| 主电机功率 | Driving motor power | 9KW | 9KW | ||
| 冷却泵功率 | Coolant pump power | 370W | 370W | ||
| 电机扭矩（X轴、Y轴、Z轴） | Torque motor(X,Y,Z axis) | 8/8/11Nm | 16/16/16Nm | ||
| 主轴 | Spindle | ||||
| 主轴锥度 | Spindle taper | BT40 | BT40 | ||
| 主轴转速 | Spindle Speed | 10-8000RPM | 10-8000RPM | ||
| 主轴中心到立柱表面距离 | Distance spindle-column | 561mm | 570mm | ||
| *大面铣直径 | Face milling dimension (Max) | Ø85mm | Ø85mm | ||
| *大立铣直径 | End milling dimension (Max) | Ø42mm | Ø42mm | ||
| 刀库 | Magazine | ||||
| 刀库容量 | Capacity | 24 tools | 24 tools | ||
| *大刀具尺寸(满刀/邻空刀） | Tool diameter (Max) |
Ø 78mm(with adjacent tool) Ø120mm |
Ø 78mm(with adjacent tool) Ø120mm |
||
| *大刀具重量 | Tool weight (Max) | 8KG | 8KG | ||
| 换刀时间 | Time-tool changing | 3 Seconds | 2.5 Seconds | ||
| 工作台 | Table | ||||
| 工作台尺寸（长×宽） | Table length×width | 1050×500mm | 1000×500mm | ||
| 主轴端到工作台面距离 | Distence spindle-table | 110-660mm | 120-720mm | ||
| T型槽(槽宽/间距/数量) | T-slot(size/distance/number) | 18mm/90mm/5 | 18mm/84mm/5 | ||
| *大承载重量 | Load(Max) | 450KG | 800KG | ||
| 行程 | Travel | ||||
| X轴 | X axis | 800mm | 900mm | ||
| Y轴 | Y axis | 500mm | 550mm | ||
| Z轴 | Z axis | 550mm | 600mm | ||
| 快移速度（X轴、Y轴、Z轴） | Rapid feed(X,Y,Z axis) | 24m/min | 24m/min | ||
| 精度 | Accuracy | ||||
| 定位精度 | Positioning accuracy | ±0.01mm | ±0.01mm | ||
| 重复定位精度 | Repeat positioning accuracy | ±0.005mm | ±0.005mm | ||
| 尺寸 | Dimensions | ||||
| 外形尺寸(L×W×H) | Overall dimension(L×W×H) | 2350×2120×2641mm | 2850×2450×2645mm | ||
| 包装尺寸(L×W×H) | Packing size(L×W×H) | 2750×2250×2525mm | 3150×2600×2850mm | ||
| 净重/毛重 | Net weight/Gross weight | 5000/5500KG | 5200/6000KG | ||
| 水箱容积 | Tank capacity | 250L | 250L | ||
